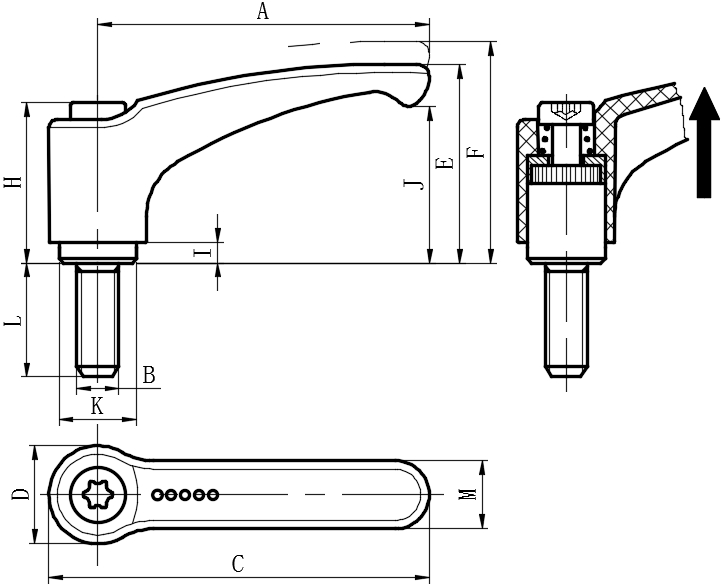

SKU 238103
A 44
B(螺纹规格) M4
C 52
D 15.5
E 30.5
F 34
H 24.5
I 3.5
J 22.5
K 10
L(螺纹长度) 12
M 11
N(齿数) 18
选择规格尺寸
  • M4/12
  • M4/16
  • M4/20
  • M4/25
  • M4/32
  • M5/12
  • M5/16
  • M5/20
  • M5/25
  • M5/32
  • M5/40
  • M5/50
  • M6/12
  • M6/16
  • M6/20
  • M6/25
  • M6/32
  • M6/40
  • M6/50
  • M6/12
  • M6/16
  • M6/20
  • M6/25
  • M6/32
  • M6/40
  • M6/50
  • M6/63
  • M8/12
  • M8/16
  • M8/20
  • M8/25
  • M8/32
  • M8/40
  • M8/50
  • M8/63
  • M10/20
  • M10/25
  • M10/32
  • M10/40
  • M10/50
  • M10/63
  • M10/80
  • M8/16
  • M8/20
  • M8/25
  • M8/32
  • M8/40
  • M8/50
  • M8/63
  • M8/80
  • M10/16
  • M10/20
  • M10/25
  • M10/32
  • M10/40
  • M10/50
  • M10/63
  • M10/80

带表示有独立模型

询价|咨询
SKU
A
B
(螺纹规格) 		C
D
E
F
H
I
J
K
L
(螺纹长度) 		M
N
(齿数)
238103 44 M4 52 15.5 30.5 34 24.5 3.5 22.5 10 12 11 18
238105 44 M4 52 15.5 30.5 34 24.5 3.5 22.5 10 16 11 18
238107 44 M4 52 15.5 30.5 34 24.5 3.5 22.5 10 20 11 18
238109 44 M4 52 15.5 30.5 34 24.5 3.5 22.5 10 25 11 18
238111 44 M4 52 15.5 30.5 34 24.5 3.5 22.5 10 32 11 18
238133 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 12 11 18
238135 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 16 11 18
238137 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 20 11 18
238139 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 25 11 18
238141 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 32 11 18
238143 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 40 11 18
238145 44 M5 52 15.5 30.5 34 24.5 3.5 22.5 10 50 11 18
238153 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 12 11 18
238155 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 16 11 18
238157 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 20 11 18
238159 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 25 11 18
238161 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 32 11 18
238163 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 40 11 18
238165 44 M6 52 15.5 30.5 34 24.5 3.5 22.5 10 50 11 18
238333 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 12 13.5 24
238335 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 16 13.5 24
238337 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 20 13.5 24
238339 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 25 13.5 24
238341 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 32 13.5 24
238343 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 40 13.5 24
238345 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 50 13.5 24
238347 63 M6 73.5 19 38.5 42 31 3.5 30 13.5 63 13.5 24
238351 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 12 13.5 24
238353 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 16 13.5 24
238355 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 20 13.5 24
238357 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 25 13.5 24
238359 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 32 13.5 24
238361 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 40 13.5 24
238363 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 50 13.5 24
238365 63 M8 73.5 19 38.5 42 31 3.5 30 13.5 63 13.5 24
238373 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 20 13.5 24
238375 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 25 13.5 24
238377 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 32 13.5 24
238379 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 40 13.5 24
238381 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 50 13.5 24
238383 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 63 13.5 24
238385 63 M10 73.5 19 38.5 42 31 3.5 30 13.5 80 13.5 24
238533 78 M8 90.5 23 45 50.5 36 3.5 35 16 16 16 26
238535 78 M8 90.5 23 45 50.5 36 3.5 35 16 20 16 26
238537 78 M8 90.5 23 45 50.5 36 3.5 35 16 25 16 26
238539 78 M8 90.5 23 45 50.5 36 3.5 35 16 32 16 26
238541 78 M8 90.5 23 45 50.5 36 3.5 35 16 40 16 26
238543 78 M8 90.5 23 45 50.5 36 3.5 35 16 50 16 26
238545 78 M8 90.5 23 45 50.5 36 3.5 35 16 63 16 26
238547 78 M8 90.5 23 45 50.5 36 3.5 35 16 80 16 26
238551 78 M10 90.5 23 45 50.5 36 3.5 35 16 16 16 26
238553 78 M10 90.5 23 45 50.5 36 3.5 35 16 20 16 26
238555 78 M10 90.5 23 45 50.5 36 3.5 35 16 25 16 26
238557 78 M10 90.5 23 45 50.5 36 3.5 35 16 32 16 26
238559 78 M10 90.5 23 45 50.5 36 3.5 35 16 40 16 26
238561 78 M10 90.5 23 45 50.5 36 3.5 35 16 50 16 26
238563 78 M10 90.5 23 45 50.5 36 3.5 35 16 63 16 26
238565 78 M10 90.5 23 45 50.5 36 3.5 35 16 80 16 26
