极昂（上海）精密机械有限公司

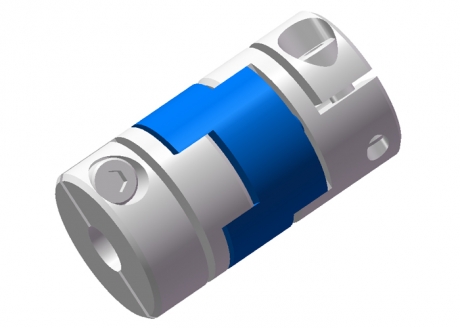

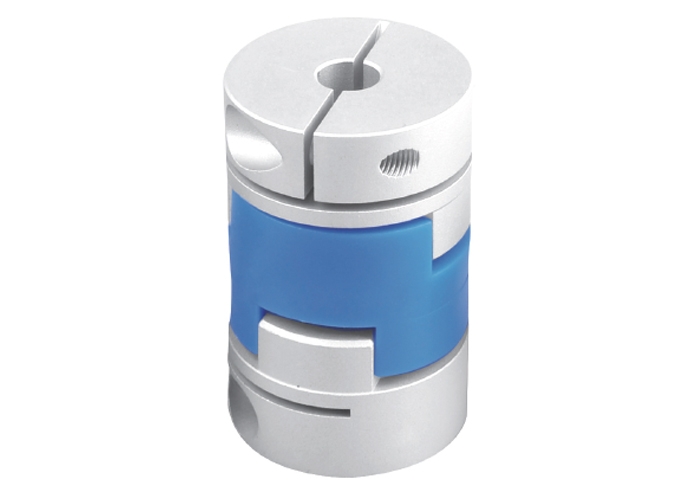

十字夹持型联轴器

SKU JAH1-C16K-5-5
A(外径) 16.0
B(孔小径) 5.0
C(孔大径) 5.0
D 29.0
E 12.5
F 3.0
H 5.0
I(紧固螺栓螺纹) M2.5
J(紧固螺栓扭矩N.m) 1.0
K 带键槽
选择规格尺寸
  • 16.0/5.0/5.0
  • 16.0/5.0/6.0
  • 16.0/6.0/6.0
  • 20.0/6.0/6.0
  • 20.0/6.0/6.35
  • 20.0/6.0/8.0
  • 20.0/6.35/6.35
  • 20.0/6.35/8.0
  • 20.0/8.0/8.0
  • 25.0/6.35/6.35
  • 25.0/6.35/8.0
  • 25.0/6.35/10.0
  • 25.0/8.0/8.0
  • 25.0/8.0/10.0
  • 25.0/10.0/10.0
  • 32.0/8.0/8.0
  • 32.0/8.0/10.0
  • 32.0/8.0/11.0
  • 32.0/8.0/12.0
  • 32.0/8.0/14.0
  • 32.0/10.0/10.0
  • 32.0/10.0/11.0
  • 32.0/10.0/12.0
  • 32.0/10.0/14.0
  • 32.0/11.0/11.0
  • 32.0/11.0/12.0
  • 32.0/11.0/14.0
  • 32.0/12.0/12.0
  • 32.0/12.0/14.0
  • 32.0/14.0/14.0
  • 16.0/5.0/5.0
  • 16.0/5.0/6.0
  • 16.0/6.0/6.0
  • 20.0/6.0/6.0
  • 20.0/6.0/6.35
  • 20.0/6.0/8.0
  • 20.0/6.35/6.35
  • 20.0/6.35/8.0
  • 20.0/8.0/8.0
  • 25.0/6.35/6.35
  • 25.0/6.35/8.0
  • 25.0/6.35/10.0
  • 25.0/8.0/8.0
  • 25.0/8.0/10.0
  • 25.0/10.0/10.0
  • 32.0/8.0/8.0
  • 32.0/8.0/10.0
  • 32.0/8.0/11.0
  • 32.0/8.0/12.0
  • 32.0/8.0/14.0
  • 32.0/10.0/10.0
  • 32.0/10.0/11.0
  • 32.0/10.0/12.0
  • 32.0/10.0/14.0
  • 32.0/11.0/11.0
  • 32.0/11.0/12.0
  • 32.0/11.0/14.0
  • 32.0/12.0/12.0
  • 32.0/12.0/14.0
  • 32.0/14.0/14.0

带表示有独立模型

询价|咨询
JAH1-C16-5-5
下载CAD模型
SKU
A
(外径) 		B
(孔小径) 		C
(孔大径) 		D
E
F
H
I
(紧固螺栓螺纹) 		J
(紧固螺栓扭矩N.m) 		K
JAH1-C16K-5-5 16.0 5.0 5.0 29.0 12.5 3.0 5.0 M2.5 1.0 带键槽
JAH1-C16K-5-6 16.0 5.0 6.0 29.0 12.5 3.0 5.0 M2.5 1.0 带键槽
JAH1-C16K-6-6 16.0 6.0 6.0 29.0 12.5 3.0 5.0 M2.5 1.0 带键槽
JAH1-C20K-6-6 20.0 6.0 6.0 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C20K-6-6.35 20.0 6.0 6.35 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C20K-6-8 20.0 6.0 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C20K-6.35-6.35 20.0 6.35 6.35 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C20K-6.35-8 20.0 6.35 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C20K-8-8 20.0 8.0 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 带键槽
JAH1-C25K-6.35-6.35 25.0 6.35 6.35 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C25K-6.35-8 25.0 6.35 8.0 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C25K-6.35-10 25.0 6.35 10.0 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C25K-8-8 25.0 8.0 8.0 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C25K-8-10 25.0 8.0 10.0 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C25K-10-10 25.0 10.0 10.0 39.0 16.5 3.8 9.0 M3 1.5 带键槽
JAH1-C32K-8-8 32.0 8.0 8.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-8-10 32.0 8.0 10.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-8-11 32.0 8.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-8-12 32.0 8.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-8-14 32.0 8.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-10-10 32.0 10.0 10.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-10-11 32.0 10.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-10-12 32.0 10.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-10-14 32.0 10.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-11-11 32.0 11.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-11-12 32.0 11.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-11-14 32.0 11.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-12-12 32.0 12.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-12-14 32.0 12.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C32K-14-14 32.0 14.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 带键槽
JAH1-C16-5-5 16.0 5.0 5.0 29.0 12.5 3.0 5.0 M2.5 1.0 不带键槽
JAH1-C16-5-6 16.0 5.0 6.0 29.0 12.5 3.0 5.0 M2.5 1.0 不带键槽
JAH1-C16-6-6 16.0 6.0 6.0 29.0 12.5 3.0 5.0 M2.5 1.0 不带键槽
JAH1-C20-6-6 20.0 6.0 6.0 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C20-6-6.35 20.0 6.0 6.35 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C20-6-8 20.0 6.0 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C20-6.35-6.35 20.0 6.35 6.35 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C20-6.35-8 20.0 6.35 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C20-8-8 20.0 8.0 8.0 33.0 14.0 3.0 6.5 M2.5 1.0 不带键槽
JAH1-C25-6.35-6.35 25.0 6.35 6.35 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C25-6.35-8 25.0 6.35 8.0 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C25-6.35-10 25.0 6.35 10.0 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C25-8-8 25.0 8.0 8.0 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C25-8-10 25.0 8.0 10.0 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C25-10-10 25.0 10.0 10.0 39.0 16.5 3.8 9.0 M3 1.5 不带键槽
JAH1-C32-8-8 32.0 8.0 8.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-8-10 32.0 8.0 10.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-8-11 32.0 8.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-8-12 32.0 8.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-8-14 32.0 8.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-10-10 32.0 10.0 10.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-10-11 32.0 10.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-10-12 32.0 10.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-10-14 32.0 10.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-11-11 32.0 11.0 11.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-11-12 32.0 11.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-11-14 32.0 11.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-12-12 32.0 12.0 12.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-12-14 32.0 12.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
JAH1-C32-14-14 32.0 14.0 14.0 45.0 19.0 4.5 11.0 M4 2.5 不带键槽
